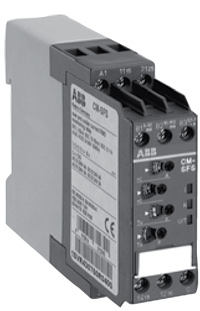

CM-SFS.2 SERIES | CURRENT WINDOW MONITORING RELAY | SINGLE PHASE | DIN RAIL MOUNT

DESCRIPTION

  • 3 mA ... 15 A current monitoring in 6 ranges
  • Monitoring of DC and AC currents
  • RMS measuring
  • Each device includes 3 measuring ranges
  • Over and under current monitoring
  • ON or OFF delay selectable
  • Latching function selectable
  • 22.5mm width
GENERAL PRODUCT INFORMATION
STANDARD PART NUMBERS
Series Part Number Input Voltage - 50/60 Hz Trip Delay Sensing Range Output Form
CM-SFS.21 1SVR 430 760 R0400 24-240 V AC/DC Adjustable
0 or 0.1-30s		 3-30 mA;
10-100 mA; 0.1-1A		 2 SPDT (2 c/o)
CM-SFS.22 1SVR 430 760 R0500 0.3-1.5A;
1.5A; 3-15A
