METAL LIMIT SWITCHES | 60mm | Ø 22 BALL-BEARING ROLLER LEVER
Ball bearing roller lever 60mm metal

DESCRIPTION

  • 60mm, IP66, UL Type 4X
  • Electromechanical limit switch
  • Visible Operation
  • Able to switch strong currents
  • Electrically separated contacts
  • Precise operating points (consistency)
  • Immune to electromagnetic disturbances
LV023 coverT
GENERAL PRODUCT INFORMATION
ADDITIONAL INFORMATION
Operating Head Type Ø 22 Ball-Bearing Roller Lever
Movement to be detected Unidirectional
Actuating device and actuation type
Conformity / (N.C. contact with positive opening operation) Limit switch data5
Maximum actuation speed (m/s) 1.5
Min. force/torque - Actuation (N)
 12
Min. force/torque - Positive opening operation (N) 40
STANDARD PART NUMBERS
Operating Head Contact Type Operation Diagram Catalog Number
Ø 22 Ball-Bearing
Roller Lever
 Snap action contacts2
 Ls45m31b11 LS65M33B11
Snap Action
Ø 22 Ball-Bearing
Roller Lever		 Non overlapping slow action contacts Ls45m31d11 LS65M33D11
Non-Overlapping Slow Action
Ø 22 Ball-Bearing
Roller Lever		 Overlapping slow action contacts Ls45m31c11 LS65M33C11
Overlapping Slow Action
Ø 22 Ball-Bearing
Roller Lever		 Slow action contacts Ls45m31l02 LS65M33L02
Slow Action
Ø 22 Ball-Bearing
Roller Lever		 Slow action contacts2 Ls45m31l20 LS65M33L20
Slow Action
Ø 22 Ball-Bearing
Roller Lever		 Snap action contacts Ls45m31b02 LS65M33B02
Snap Action

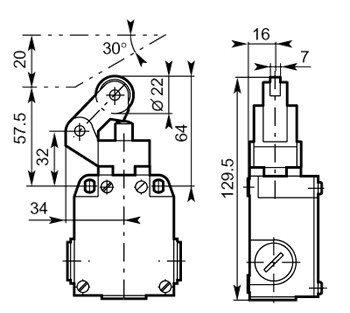

APPROXIMATE DIMENSIONS (mm)
