METAL LIMIT SWITCHES | 60mm | Ø 22 POLYAMIDE ROLLER LEVER
DESCRIPTION
- 60mm, IP66, UL Type 4X
- Electromechanical limit switch
- Visible Operation
- Able to switch strong currents
- Electrically separated contacts
- Precise operating points (consistency)
- Immune to electromagnetic disturbances
ADDITIONAL INFORMATION
| Operating Head Type | Ø 22 Polyamide Roller Lever |
| Movement to be detected | 30˚ Cam Translation Movement |
| Actuating device and actuation type |  |
Conformity /  (N.C. contact with positive opening operation) |
 |
| Maximum actuation speed (m/s) | 1.5 |
| Min. force/torque - Actuation (N) |
0.15 N.m |
| Min. force/torque - Positive opening operation (N) | 0.44 N.m |
STANDARD PART NUMBERS
| Operating Head | Contact Type | Operation Diagram | Catalog Number |
| Ø 22 Polyamide Roller Lever |
 |
 |
LS65M41B11 |
| Snap Action | |||
| Ø 22 Polyamide Roller Lever |
 |
 |
LS65M41D11 |
| Non-Overlapping Slow Action | |||
| Ø 22 Polyamide Roller Lever |
 |
 |
LS65M41C11 |
| Overlapping Slow Action | |||
| Ø 22 Polyamide Roller Lever |
 |
 |
LS65M41L02 |
| Slow Action | |||
| Ø 22 Polyamide Roller Lever |
 |
 |
LS65M41L20 |
| Slow Action | |||
| Ø 22 Polyamide Roller Lever |
 |
 |
LS65M41B02 |
| Snap Action |

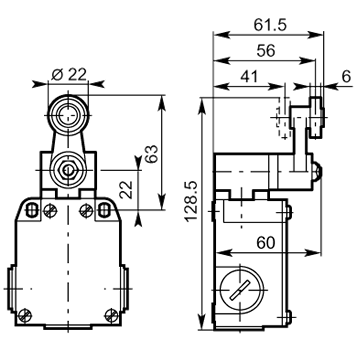

APPROXIMATE DIMENSIONS (mm)
