METAL LIMIT SWITCHES | 60mm | Ø 45 RUBBER ROLLER LEVER

DESCRIPTION

  • 60mm, IP66, UL Type 4X
  • Electromechanical limit switch
  • Visible Operation
  • Able to switch strong currents
  • Electrically separated contacts
  • Precise operating points (consistency)
  • Immune to electromagnetic disturbances
GENERAL PRODUCT INFORMATION
ADDITIONAL INFORMATION
Operating Head Type Ø 45 Rubber Roller Lever
Movement to be detected 30˚ Cam Translation Movement
Actuating device and actuation type
Conformity / (N.C. contact with positive opening operation)
Maximum actuation speed (m/s) 1.5
Min. torque - Actuation (N.m)
 0.15
Min. torque - Positive opening operation (N.m) -
STANDARD PART NUMBERS
Operating Head Contact Type Operation Diagram Catalog Number
Ø 45 Rubber
Roller Lever
LS65M44B11
Snap Action
Ø 45 Rubber
Roller Lever		 LS65M44D11
Non-Overlapping Slow Action
Ø 45 Rubber
Roller Lever		 LS65M44C11
Overlapping Slow Action
Ø 45 Rubber
Roller Lever		 LS65M44L02
Slow Action
Ø 45 Rubber
Roller Lever		 LS65M44L20
Slow Action
Ø 45 Rubber
Roller Lever		 LS65M44B02
Snap Action

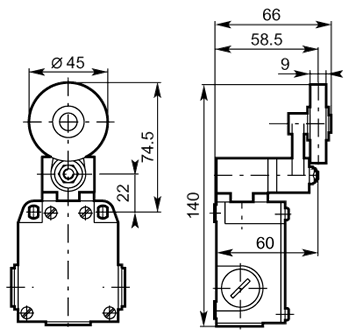

APPROXIMATE DIMENSIONS (mm)
