METAL LIMIT SWITCHES | 60mm | ADJ. Ø 22 STAINLESS STEEL BALL-BEARING ROLLER LEVER
DESCRIPTION
- 60mm, IP66, UL Type 4X
- Electromechanical limit switch
- Visible Operation
- Able to switch strong currents
- Electrically separated contacts
- Precise operating points (consistency)
- Immune to electromagnetic disturbances
Processor running separate PLCs? ABB Freelance DCS systems for food and beverage.
ADDITIONAL INFORMATION
| Operating Head Type | Adj. Ø 22 Stainless Steel Ball-Bearing Roller Lever |
| Movement to be detected | 30˚ Cam Translation Movement |
| Actuating device and actuation type |  |
Conformity /  (N.C. contact with positive opening operation) |
 |
| Maximum actuation speed (m/s) | 1.5 |
| Min. torque - Actuation (N.m) |
0.15 |
| Min. torque - Positive opening operation (N.m) | - |
STANDARD PART NUMBERS
| Operating Head | Contact Type | Operation Diagram | Catalog Number |
| Adj. Ø 22 Stainless Steel Ball-Bearing Roller Lever |
 |
 |
LS65M53B11+ |
| Snap Action | |||
| Adj. Ø 22 Stainless Steel Ball-Bearing Roller Lever |
 |
 |
LS65M53D11+ |
| Non-Overlapping Slow Action | |||
| Adj. Ø 22 Stainless Steel Ball-Bearing Roller Lever |
 |
 |
LS65M53C11+ |
| Overlapping Slow Action | |||
| Adj. Ø 22 Stainless Steel Ball-Bearing Roller Lever |
 |
 |
LS65M53L02+ |
| Slow Action | |||
| Adj. Ø 22 Stainless Steel Ball-Bearing Roller Lever |
 |
 |
LS65M53L20+ |
| Slow Action | |||
| Adj. Ø 22 Stainless Steel Ball-Bearing Roller Lever |
 |
 |
LS65M53B02+ |
| Snap Action |

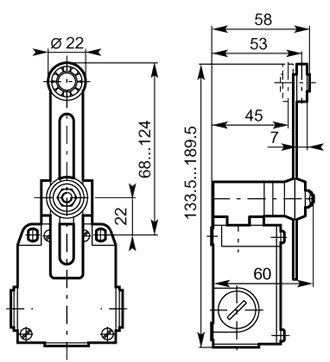

APPROXIMATE DIMENSIONS (mm)
