METAL LIMIT SWITCHES | 60mm | FLEXIBLE ROD WITH INSULATED END
DESCRIPTION
- 60mm, IP66, UL Type 4X
- Electromechanical limit switch
- Visible Operation
- Able to switch strong currents
- Electrically separated contacts
- Precise operating points (consistency)
- Immune to electromagnetic disturbances
Need a standard starter panel? See Streamline's starter panels.
ADDITIONAL INFORMATION
| Operating Head Type | Flexible Rod With Insulated End |
| Movement to be detected | Multidirectional |
| Actuating device and actuation type |  |
Conformity /  (N.C. contact with positive opening operation) |
 |
| Maximum actuation speed (m/s) | 1 |
| Min. torque - Actuation (N.m) |
0.18 |
| Min. torque - Positive opening operation (N.m) | - |
STANDARD PART NUMBERS
| Operating Head | Contact Type | Operation Diagram | Catalog Number |
| Flexible Rod With Insulated End |
 |
 |
LS65M92B11+ |
| Snap Action | |||
| Flexible Rod With Insulated End |
 |
 |
LS65M92D11+ |
| Non-Overlapping Slow Action | |||
| Flexible Rod With Insulated End |
 |
 |
LS65M92C11+ |
| Overlapping Slow Action | |||
| Flexible Rod With Insulated End |
 |
 |
LS65M92L02+ |
| Slow Action | |||
| Flexible Rod With Insulated End |
 |
 |
LS65M92L20+ |
| Slow Action | |||
| Flexible Rod With Insulated End |
 |
 |
LS65M92B02+ |
| Snap Action |

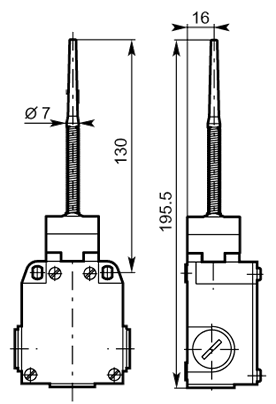

APPROXIMATE DIMENSIONS (mm)
