METAL LIMIT SWITCHES | 60mm | LATERAL PLUNGER WITH VERTICAL ROLLER
DESCRIPTION
- 60mm, IP66, UL Type 4X
- Electromechanical limit switch
- Visible Operation
- Able to switch strong currents
- Electrically separated contacts
- Precise operating points (consistency)
- Immune to electromagnetic disturbances
ADDITIONAL INFORMATION
| Operating Head Type | Lateral Plunger With Vertical Roller |
| Movement to be detected | 30˚ Cam Translation Movement |
| Actuating device and actuation type |  |
Conformity /  (N.C. contact with positive opening operation) |
 |
| Maximum actuation speed (m/s) | 0.5 |
| Min. force - Actuation (N) |
30 |
| Min. force - Positive opening operation (N) | 70 |
STANDARD PART NUMBERS
| Operating Head | Contact Type | Operation Diagram | Catalog Number |
| Lateral Plunger With Vertical Roller |
 |
 |
LS65M22B11 |
| Snap Action | |||
| Lateral Plunger With Vertical Roller |
 |
 |
LS65M22D11 |
| Non-Overlapping Slow Action | |||
| Lateral Plunger With Vertical Roller |
 |
 |
LS65M22C11 |
| Overlapping Slow Action | |||
| Lateral Plunger With Vertical Roller |
 |
 |
LS65M22L02 |
| Slow Action | |||
| Lateral Plunger With Vertical Roller |
 |
 |
LS65M22L20 |
| Slow Action | |||
| Lateral Plunger With Vertical Roller |
 |
 |
LS65M22B02 |
| Snap Action |

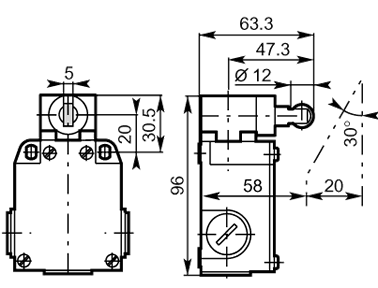

APPROXIMATE DIMENSIONS (mm)
