METAL LIMIT SWITCHES | 60mm | SPRING ROD
DESCRIPTION
- 60mm, IP66, UL Type 4X
- Electromechanical limit switch
- Visible Operation
- Able to switch strong currents
- Electrically separated contacts
- Precise operating points (consistency)
- Immune to electromagnetic disturbances
Save time and money! Let Gross Manufacturing, our UL 508A listed panel shop, put everything together!
ADDITIONAL INFORMATION
| Operating Head Type | Spring Rod |
| Movement to be detected | Multidirectional |
| Actuating device and actuation type |  |
Conformity /  (N.C. contact with positive opening operation) |
 |
| Maximum actuation speed (m/s) | 1 |
| Min. torque - Actuation (N.m) |
0.18 |
| Min. torque - Positive opening operation (N.m) | - |
STANDARD PART NUMBERS
| Operating Head | Contact Type | Operation Diagram | Catalog Number |
| Spring Rod |  |
 |
LS65M91B11+ |
| Snap Action | |||
| Spring Rod |  |
 |
LS65M91D11+ |
| Non-Overlapping Slow Action | |||
| Spring Rod |  |
 |
LS65M91C11+ |
| Overlapping Slow Action | |||
| Spring Rod |  |
 |
LS65M91L02+ |
| Slow Action | |||
| Spring Rod |  |
 |
LS65M91L20+ |
| Slow Action | |||
| Spring Rod |  |
 |
LS65M91B02+ |
| Snap Action |

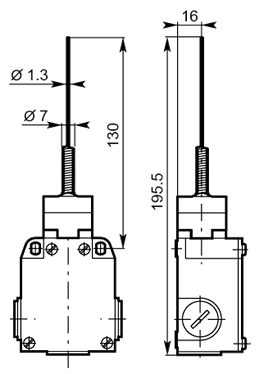

APPROXIMATE DIMENSIONS (mm)
