METAL LIMIT SWITCHES | 60mm | STAINLESS STEEL BALL PLUNGER
DESCRIPTION
- 60mm, IP66, UL Type 4X
- Electromechanical limit switch
- Visible Operation
- Able to switch strong currents
- Electrically separated contacts
- Precise operating points (consistency)
- Immune to electromagnetic disturbances
ADDITIONAL INFORMATION
| Operating Head Type | Stainless Steel Ball Plunger |
| Movement to be detected | On End |
| Actuating device and actuation type |  |
Conformity /  (N.C. contact with positive opening operation) |
 |
| Maximum actuation speed (m/s) | 0.5 |
| Min. force - Actuation (N) |
22 |
| Min. force - Positive opening operation (N) | 66 |
STANDARD PART NUMBERS
| Operating Head | Contact Type | Operation Diagram | Catalog Number |
| Stainless Steel Ball Plunger |
 |
 |
LS65M12B11 |
| Snap Action | |||
| Stainless Steel Ball Plunger |
 |
 |
LS65M12D11 |
| Non-Overlapping Slow Action | |||
| Stainless Steel Ball Plunger |
 |
 |
LS65M12C11 |
| Overlapping Slow Action | |||
| Stainless Steel Ball Plunger |
 |
 |
LS65M12L02 |
| Slow Action | |||
| Stainless Steel Ball Plunger |
 |
 |
LS65M12L20 |
| Slow Action | |||
| Stainless Steel Ball Plunger |
 |
 |
LS65M12B02 |
| Snap Action |

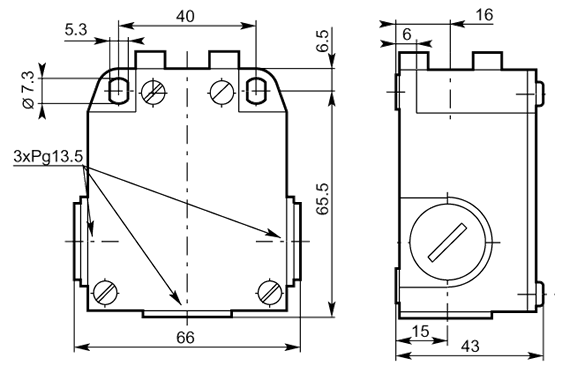

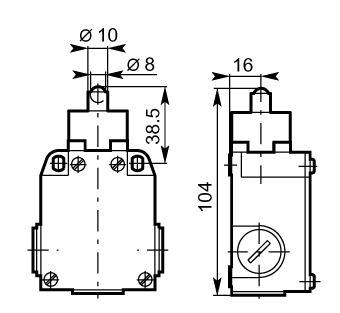

APPROXIMATE DIMENSIONS (mm)
