PLASTIC LIMIT SWITCHES | 30mm | Ø 45 RUBBER ROLLER LEVER
45 rubber roller lever

DESCRIPTION

  • 30mm, IP65, UL Type 4
  • Electromechanical limit switch
  • Visible Operation
  • Able to switch strong currents
  • Electrically separated contacts
  • Precise operating points (consistency)
  • Immune to electromagnetic disturbances
LV023 coverT
GENERAL PRODUCT INFORMATION
ADDITIONAL INFORMATION
Operating Head Type Ø 45 Rubber Roller Lever
Movement to be detected 30˚ Cam Translation Movement
Actuating device and actuation type
Conformity / (N.C. contact with positive opening operation) Limit switch data3
Maximum actuation speed (m/s) 1.5
Min. torque - Actuation (N.m)
 0.10
Min. torque - Positive opening operation (N.m) -
STANDARD PART NUMBERS
Operating Head Contact Type Operation Diagram Catalog Number
Ø 45 Rubber
Roller Lever
 Snap action contacts2
 Ls35p42b11 LS35P42B11
Snap Action
Ø 45 Rubber
Roller Lever
 Non overlapping slow action contacts Ls35p42d11 LS35P42D11
Non-Overlapping Slow Action
Ø 45 Rubber
Roller Lever		 Overlapping slow action contacts Ls35p42c11 LS35P42C11
Overlapping Slow Action
Ø 45 Rubber
Roller Lever		 Slow action contacts Ls35p42l02 LS35P42L02
Slow Action
Ø 45 Rubber
Roller Lever		 Slow action contacts2 Ls35p42l20 LS35P42L20
Slow Action
Ø 45 Rubber
Roller Lever		 Snap action contacts Ls35p42b02 LS35P42B02
Snap Action

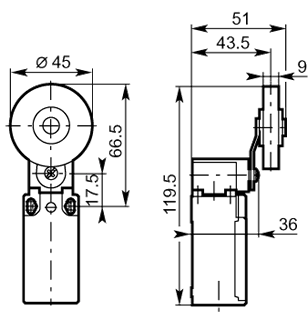

APPROXIMATE DIMENSIONS (mm)
