PLASTIC LIMIT SWITCHES | 30mm | ADJUSTABLE Ø 18 POLYAMIDE ROLLER LEVER
DESCRIPTION
- 30mm, IP65, UL Type 4
- Electromechanical limit switch
- Visible Operation
- Able to switch strong currents
- Electrically separated contacts
- Precise operating points (consistency)
- Immune to electromagnetic disturbances
Building an operator station? Gross Manufacturing, our UL 508A panel shop, can build your pushbuttons, PLC and HMI into a finished control panel.
ADDITIONAL INFORMATION
| Operating Head Type | Adjustable Ø 18 Polyamide Roller Lever |
| Movement to be detected | 30˚ Cam Translation Movement |
| Actuating device and actuation type |  |
Conformity /  (N.C. contact with positive opening operation) |
 |
| Maximum actuation speed (m/s) | 1.5 |
| Min. torque - Actuation (N.m) |
0.10 |
| Min. torque - Positive opening operation (N.m) | - |
STANDARD PART NUMBERS
| Operating Head | Contact Type | Operation Diagram | Catalog Number |
| Adjustable Ø 18 Polyamide Roller Lever |
 |
 |
LS35P51B11+ |
| Snap Action | |||
| Adjustable Ø 18 Polyamide Roller Lever |
 |
 |
LS35P51D11+ |
| Non-Overlapping Slow Action | |||
| Adjustable Ø 18 Polyamide Roller Lever |
 |
 |
LS35P51C11+ |
| Overlapping Slow Action | |||
| Adjustable Ø 18 Polyamide Roller Lever |
 |
 |
LS35P51L02+ |
| Slow Action | |||
| Adjustable Ø 18 Polyamide Roller Lever |
 |
 |
LS35P51L20+ |
| Slow Action | |||
| Adjustable Ø 18 Polyamide Roller Lever |
 |
 |
LS35P51B02+ |
| Snap Action |

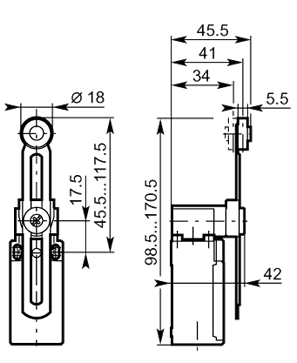

APPROXIMATE DIMENSIONS (mm)
