PLASTIC LIMIT SWITCHES | 30mm | ADJUSTABLE Ø 3 FIBERGLASS ROD LEVER
DESCRIPTION
- 30mm, IP65, UL Type 4
- Electromechanical limit switch
- Visible Operation
- Able to switch strong currents
- Electrically separated contacts
- Precise operating points (consistency)
- Immune to electromagnetic disturbances
ADDITIONAL INFORMATION
| Operating Head Type | Adjustable Ø 3 Fiberglass Rod Lever |
| Movement to be detected | Fully Directional Translation |
| Actuating device and actuation type |  |
Conformity /  (N.C. contact with positive opening operation) |
 |
| Maximum actuation speed (m/s) | 1.5 |
| Min. torque - Actuation (N.m) |
0.10 |
| Min. torque - Positive opening operation (N.m) | - |
STANDARD PART NUMBERS
| Operating Head | Contact Type | Operation Diagram | Catalog Number |
| Adjustable Ø 3 Fiberglass Rod Lever |
 |
 |
LS35P72B11 |
| Snap Action | |||
| Adjustable Ø 3 Fiberglass Rod Lever |
 |
 |
LS35P72D11 |
| Non-Overlapping Slow Action | |||
| Adjustable Ø 3 Fiberglass Rod Lever |
 |
 |
LS35P72C11 |
| Overlapping Slow Action | |||
| Adjustable Ø 3 Fiberglass Rod Lever |
 |
 |
LS35P72L02 |
| Slow Action | |||
| Adjustable Ø 3 Fiberglass Rod Lever |
 |
 |
LS35P72L20 |
| Slow Action | |||
| Adjustable Ø 3 Fiberglass Rod Lever |
 |
 |
LS35P72B02 |
| Snap Action |

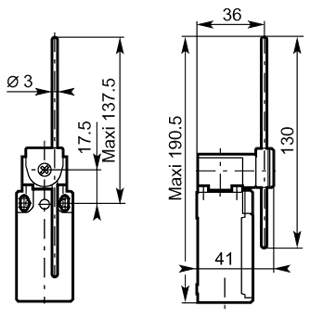

APPROXIMATE DIMENSIONS (mm)
