PLASTIC LIMIT SWITCHES | 30mm | PLASTIC ROLLER LEVER ON STEEL PLUNGER
DESCRIPTION
- 30mm, IP65, UL Type 4
- Electromechanical limit switch
- Visible Operation
- Able to switch strong currents
- Electrically separated contacts
- Precise operating points (consistency)
- Immune to electromagnetic disturbances
Need a standard starter panel? See Streamline's starter panels.
ADDITIONAL INFORMATION
| Operating Head Type | Plastic Roller Lever on Steel Plunger |
| Movement to be detected | 30˚ Unidirectional Cam Translation |
| Actuating device and actuation type |  |
Conformity /  (N.C. contact with positive opening operation) |
 |
| Maximum actuation speed (m/s) | 1 |
| Min. force - Actuation (N) |
3 |
| Min. force - Positive opening operation (N) | 24 |
STANDARD PART NUMBERS
| Operating Head | Contact Type | Operation Diagram | Catalog Number |
| Plastic Roller Lever On Steel Plunger |
 |
 |
LS35P32B11+ |
| Snap Action | |||
| Plastic Roller Lever On Steel Plunger |
 |
 |
LS35P32D11+ |
| Non-Overlapping Slow Action | |||
| Plastic Roller Lever On Steel Plunger |
 |
 |
LS35P32C11+ |
| Overlapping Slow Action | |||
| Plastic Roller Lever On Steel Plunger |
 |
 |
LS35P32L02+ |
| Slow Action | |||
| Plastic Roller Lever On Steel Plunger |
 |
 |
LS35P32L20+ |
| Slow Action | |||
| Plastic Roller Lever On Steel Plunger |
 |
 |
LS35P32B02+ |
| Snap Action |

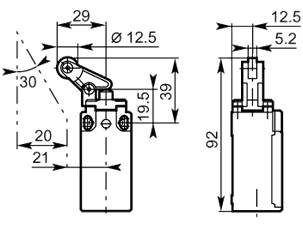

APPROXIMATE DIMENSIONS (mm)
