PLASTIC LIMIT SWITCHES | 30mm | RIGHT ANGLE KEY
Right angle key

DESCRIPTION

  • 30mm, IP65, UL Type 4
  • Electromechanical limit switch
  • Visible Operation
  • Able to switch strong currents
  • Electrically separated contacts
  • Precise operating points (consistency)
  • Immune to electromagnetic disturbances
LV023 coverT
GENERAL PRODUCT INFORMATION
ADDITIONAL INFORMATION
Operating Head Type Right Angle Key
Movement to be detected Key translation, on end or lateral
Actuating device and actuation type
Conformity / (N.C. contact with positive opening operation) Limit switch data
Maximum actuation speed (m/s) 0.5
Min. force - Actuation (N)
 18
Min. force - Positive opening operation (N) 60
STANDARD PART NUMBERS
Operating Head Contact Type Operation Diagram Catalog Number
Right Angle Key
 Snap action contacts2
 Ls35p15b11 LS35P15B11
Snap Action
Right Angle Key
 Non overlapping slow action contacts Ls35p15d11 LS35P15D11
Non-Overlapping Slow Action
Right Angle Key Overlapping slow action contacts Ls35p15c11 LS35P15C11
Overlapping Slow Action
Right Angle Key Slow action contacts Ls35p15l02 LS35P15L02
Slow Action
Right Angle Key Slow action contacts2 Ls35p15l20 LS35P15L20
Slow Action
Right Angle Key Snap action contacts Ls35p15b02 LS35P15B02
Snap Action

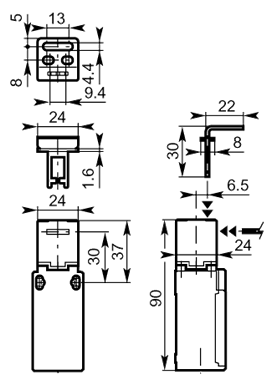

APPROXIMATE DIMENSIONS (mm)
