PLASTIC LIMIT SWITCHES | 30mm | RIGHT ANGLE KEY
Straight key plastic 30mm

DESCRIPTION

  • 30mm, IP65, UL Type 4
  • Electromechanical limit switch
  • Visible Operation
  • Able to switch strong currents
  • Electrically separated contacts
  • Precise operating points (consistency)
  • Immune to electromagnetic disturbances
LV023 coverT
GENERAL PRODUCT INFORMATION
ADDITIONAL INFORMATION
Operating Head Type Straight Key
Movement to be detected Key translation, on end or lateral
Actuating device and actuation type
Conformity / (N.C. contact with positive opening operation) Limit switch data
Maximum actuation speed (m/s) 0.5
Min. force - Actuation (N)
 18
Min. force - Positive opening operation (N) 60
STANDARD PART NUMBERS
Operating Head Contact Type Operation Diagram Catalog Number
Straight Key
 Snap action contacts2
 Ls35p16b11 LS35P16B11
Snap Action
Straight Key
 Non overlapping slow action contacts Ls35p16d11 LS35P16D11
Non-Overlapping Slow Action
Straight Key Overlapping slow action contacts Ls35p16c11 LS35P16C11
Overlapping Slow Action
Straight Key Slow action contacts Ls35p16l02 LS35P16L02
Slow Action
Straight Key Slow action contacts2 Ls35p16l20 LS35P15L20
Slow Action
Straight Key Snap action contacts Ls35p16b02 LS35P15B02
Snap Action

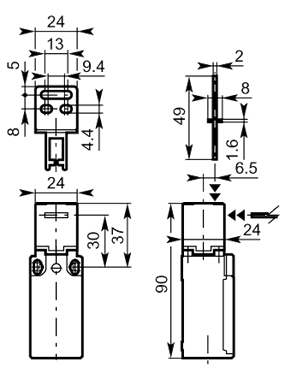

APPROXIMATE DIMENSIONS (mm)
