PLASTIC LIMIT SWITCHES | 40mm | COIL SPRING LEVER
Coil spring lever

DESCRIPTION

  • 40mm, IP65, UL Type 4
  • Electromechanical limit switch
  • Visible Operation
  • Able to switch strong currents
  • Electrically separated contacts
  • Precise operating points (consistency)
  • Immune to electromagnetic disturbances
LV023 coverT
GENERAL PRODUCT INFORMATION
ADDITIONAL INFORMATION
Operating Head Type Coil Spring Lever
Movement to be detected Fully Directional Translation Movement
Actuating device and actuation type
Conformity / (N.C. contact with positive opening operation) Limit switch data3
Maximum actuation speed (m/s) 1.5
Min. torque - Actuation (N.m)
 0.15
Min. torque - Positive opening operation (N.m) -
STANDARD PART NUMBERS
Operating Head Contact Type Operation Diagram Catalog Number
Coil Spring Lever
 Snap action contacts2
 Ls45p44b11 LS45P62B11
Snap Action
Coil Spring Lever Non overlapping slow action contacts Ls45p44d11 LS45P62D11
Non-Overlapping Slow Action
Coil Spring Lever Overlapping slow action contacts Ls45p44c11 LS45P62C11
Overlapping Slow Action
Coil Spring Lever Slow action contacts Ls45p44l02 LS45P62L02
Slow Action
Coil Spring Lever Slow action contacts2 Ls45p44l20 LS45P62L20
Slow Action
Coil Spring Lever Snap action contacts Ls45p44b02 LS45P62B02
Snap Action

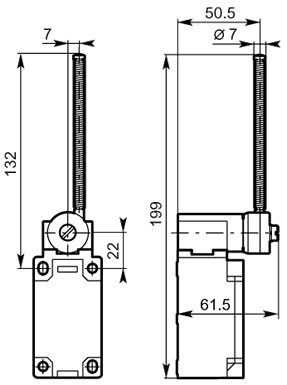

APPROXIMATE DIMENSIONS (mm)
