PLASTIC LIMIT SWITCHES | 40mm | FLEXIBLE ROD WITH INSULATED END
Flexible rod insulated end 40mm plastic

DESCRIPTION

  • 40mm, IP65, UL Type 4
  • Electromechanical limit switch
  • Visible Operation
  • Able to switch strong currents
  • Electrically separated contacts
  • Precise operating points (consistency)
  • Immune to electromagnetic disturbances
LV023 coverT
GENERAL PRODUCT INFORMATION
ADDITIONAL INFORMATION
Operating Head Type Flexible Rod with Insulated End
Movement to be detected Multidirectional
Actuating device and actuation type
Conformity / (N.C. contact with positive opening operation) Limit switch data3
Maximum actuation speed (m/s) 1
Min. torque - Actuation (N.m)
 0.18
Min. torque - Positive opening operation (N.m) -
STANDARD PART NUMBERS
Operating Head Contact Type Operation Diagram Catalog Number
Flexible Rod with
Insulated End
 Snap action contacts2
 Ls45p91b11 LS45P92B11
Snap Action
Flexible Rod with
Insulated End		 Non overlapping slow action contacts Ls45p91d11 LS45P92D11
Non-Overlapping Slow Action
Flexible Rod with
Insulated End		 Overlapping slow action contacts Ls45p91c11 LS45P92C11
Overlapping Slow Action
Flexible Rod with
Insulated End		 Slow action contacts Ls45p91l02 LS45P92L02
Slow Action
Flexible Rod with
Insulated End		 Slow action contacts2 Ls45p91l20 LS45P92L20
Slow Action
Flexible Rod with
Insulated End		 Snap action contacts Ls45p91b02 LS45P92B02
Snap Action

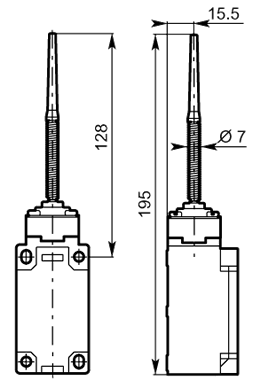

APPROXIMATE DIMENSIONS (mm)
