PLASTIC LIMIT SWITCHES | 40mm | POLYAMIDE ROLLER LEVER
Polyamide roller lever plastic 40mm

DESCRIPTION

  • 40mm, IP65, UL Type 4
  • Electromechanical limit switch
  • Visible Operation
  • Able to switch strong currents
  • Electrically separated contacts
  • Precise operating points (consistency)
  • Immune to electromagnetic disturbances
LV023 coverT
GENERAL PRODUCT INFORMATION
ADDITIONAL INFORMATION
Operating Head Type Polyamide Roller Lever
Movement to be detected Unidirectional
Actuating device and actuation type
Conformity / (N.C. contact with positive opening operation) Limit switch data5
Maximum actuation speed (m/s) 1
Min. force/torque - Actuation (N)
 12
Min. force/torque - Positive opening operation (N) 40
STANDARD PART NUMBERS
Operating Head Contact Type Operation Diagram Catalog Number
Polyamide
Roller Lever
 Snap action contacts2
 Ls45p31b11 LS45P31B11
Snap Action
Polyamide
Roller Lever		 Non overlapping slow action contacts Ls45p31d11 LS45P31D11
Non-Overlapping Slow Action
Polyamide
Roller Lever		 Overlapping slow action contacts Ls45p31c11 LS45P31C11
Overlapping Slow Action
Polyamide
Roller Lever		 Slow action contacts Ls45p31l02 LS45P31L02
Slow Action
Polyamide
Roller Lever		 Slow action contacts2 Ls45p31l20 LS45P31L20
Slow Action
Polyamide
Roller Lever		 Snap action contacts Ls45p31b02 LS45P31B02
Snap Action

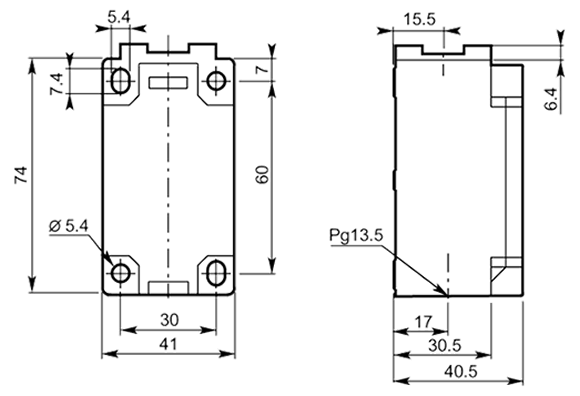

APPROXIMATE DIMENSIONS (mm)
