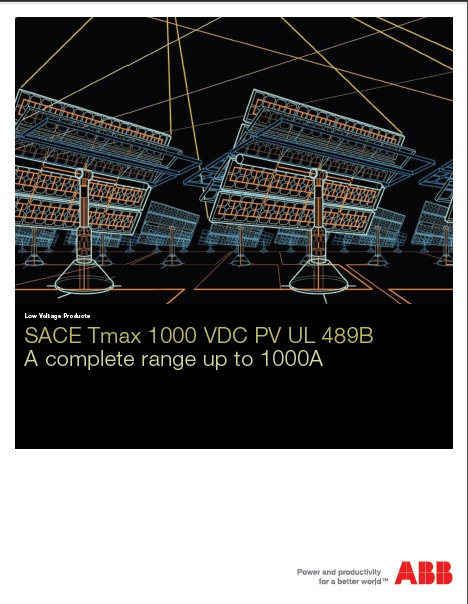

SACE TMAX PV UL 489B CIRCUIT BREAKERS | 1000A ∆ | PHOTOVOLTAIC
DESCRIPTION
- TMAX PV circuit breakers are UL 498B compliant molded-case-circuit breakers (MCCB) rated up to 1000V dc, intended for use with photovoltaic systems.
- A complete range of MCCB and MCS will be available up to 1000A for use at 1000V DC.
- Complete with jumpers for connections of poles in series
Solar project? Streamline solar combiner boxes combine PV strings onto a common bus.
TMAX PV Switch-disconnectors in compliance with UL489B
| T1N-D/PV | T4N-D/PV | T5n-D/PV | T6N-D/PV | T7N-D/PV | |
| Rating, [A] | 100 | 200 | 400 | 600-800 | 1000 |
| Poles, [Nr] | 4 | 3 | 3 | 4 | 4 |
| Rated Voltage DC, [V] | 1000 | 1000 | 1000 | 1000 | 1000 |
| Versions | F | F | F | F | F |
| Terminals | FC Cu | FC Cu AI | FC Cu AI | FC Cu AI-EF | FC Cu AI |
| Connections | Jumpers | Jumpers | Jumpers | Jumpers | Jumpers |
TMAX PV Ciruit-breakers in compliance with UL489B
| T4N/PV | T5N/PV | T6N/PV | |
| Rating, [A] | 40-2000 | 400 | 600-800 |
| Poles, [Nr] | 3 | 3 | 4 |
| Rated Voltage DC, [V] | 1000 | 1000 | 1000 |
| Trip Unit | TMA | TMA | TMA |
| Versions | F | F | F |
| Terminals | FC Cu AI | FC Cu AI | FC Cu AI-EF |
| Connections | Jumpers | Jumpers | Jumpers |
