TYPE PSR | SOFTSTARTERS
DESCRIPTION
- Designed for motor currents from 3 to 45A, PSR Softstarters complement the existing advanced PST Softstarters for 30 - 1050A.
- Compact and easily accessible
- Easy set up and operation
- Remote controlled by bus communication
- PSR range comprises three physical sizes with widths from 45 to 54mm
Drives add harmonics. See what IEEE 519 allows and how to fix it.

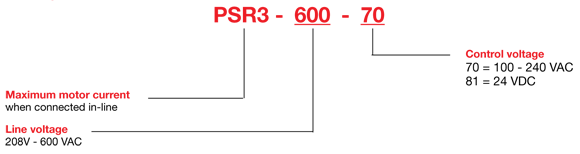

CATALOG NUMBER EXPLANATION
TYPE PSR | OPEN
| Connected In-Line Catalog Number |
Maximum Motor Current | Maximum Horsepower | ||||
| UL | IEC | 208V | 240V | 480V | 600V | |
| PSR3-600-70 PSR3-600-81 |
3.4 | 3.9 | 0.5 | 0.75 | 2 | 2 |
| PSR6-600-70 PSR6-600-81 |
6.1 | 6.8 | 1 | 1.5 | 3 | 5 |
| PSR9-600-70 PSR9-600-81 |
9.0 | 9.0 | 2 | 2 | 5 | 7.5 |
| PSR12-600-70 PSR12-600-81 |
11.0 | 12.0 | 3 | 3 | 7.5 | 10 |
| PSR16-600-70 PSR16-600-81 |
15.2 | 16.0 | 3 | 5 | 10 | 10 |
| PSR25-600-70 PSR25-600-81 |
24.2 | 25.0 | 7.5 | 7.5 | 15 | 20 |
| PSR30-600-70 PSR30-600-81 |
28.0 | 30.0 | 7.5 | 10 | 20 | 25 |
| PSR37-600-70 PSR37-600-81 |
34.0 | 37.0 | 10 | 10 | 25 | 30 |
| PSR45-600-70 PSR45-600-81 |
46.2 | 45.0 | 15 | 15 | 30 | 40 |
