TYPE PSS | SOFTSTARTERS | ENCLOSED | NEMA 1 COMBINATION
Pss

DESCRIPTION

  • ABB low voltage softstarters cover the complete range from 3A to 1250A.
  • Built-in bypass contacts allow you to build space-saving, compact designs
  • Adjustable parameters include acceleration time and initial voltage for starting and deceleration time for stopping
  • Total solid state solution is ideal for applications with many starts per hour
LV023 coverT
GENERAL PRODUCT INFORMATION

Drives add harmonics. See what IEEE 519 allows and how to fix it.

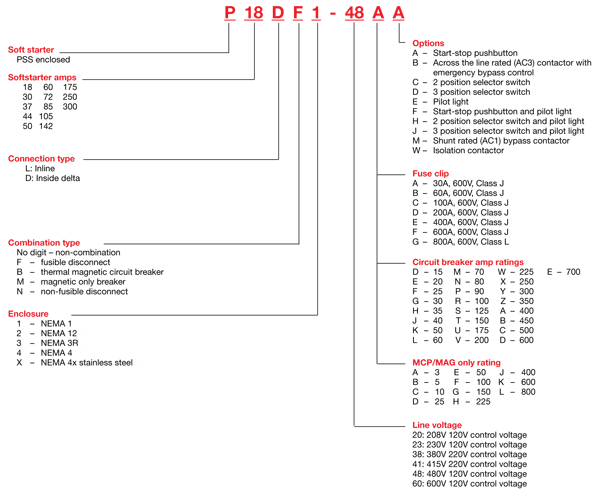

CATALOG NUMBER EXPLANATION
Pss number explanation enclosed
TYPE PSS | ENCLOSED - NEMA 1 COMBINATION | CONNECTED INLINE
Maximum Motor Current Maximum Horsepower 480V w/fusible disconnect
switch NEMA 1		 600V w/ fusible disconnect
switch NEMA 1		 480V w/ circuit breaker NEMA 1 600V w/ circuit breaker NEMA 1
UL IEC 208V 240V 380V 480V 600V Catalog Number Catalog Number Catalog Number Catalog Number
18 18 5
-		 5
-		 10
-		 10
-		 -
15		 P18LF1-48A+
-		 -
P18LF1-60A+		 P18LB1-48E+
-		 -
P18LB1-60E+
25 - -
-		 7.5
-		 -
-		 15
-		 -
20		 P22LF1-48B+
-		 -
P22LF1-60B+		 P22LB1-48G+
-
 -
P22LB1-60G+
28 30 7.5
-		 10
-		 15
-		 20
-		 -
25		 P30LF1-48B+
-		 -
P30LF1-60B+		 P30LB1-48J+
-		 -
P30LB1-60J+
34 37 10
-		 10
-		 20
-		 25
-		 -
30		 P37LF1-48B+
-		 -
P37LF1-60B+		 P37LB1-48K+
-		 -
P37LB1-60K+
40 44 10
-		 10
-		 25
-		 30
-		 -
30		 P44LF1-48C+
-		 -
P44LF1-60B+		 P44LB1-48L+
-		 -
P44LB1-60L+
47 50 15
-		 15
-		 25
-		 30
-		 -
40		 P50LF1-48C+
-		 -
P50LF1-60C+		 P50LB1-48N+
-		 -
P50LB1-60N+
56 60 15
-		 20
-		 30
-		 40
-		 -
50		 P60LF1-48C+
-		 -
P60LF1-60C+		 P60LB1-48N+
-		 -
P60LB1-60N+
67 72 20
-		 20
-		 40
-		 50
-		 -
60		 P72LF1-48C+
-		 -
P72LF1-60C+		 P72LB1-48R+
-		 -
P72LB1-60R+
85 85 25
-		 30
-		 50
-		 60
-		 -
75		 P85LF1-48D+
-		 -
P85LF1-60D+		 P85LB1-48S+
-		 -
P85LB1-60S+
105 105 30
-		 40
-		 60
-		 75
-		 -
100		 P105LF1-48D+
-		 -
P105LF1-60D+		 P105LB1-48T+
-		 -
P105LB1-60T+
125 142 40
-		 40
-		 75
-		 100
-		 -
125		 P142LF1-48D+
-		 -
P142LF1-60D+		 P142LB1-48V+
-		 -
P142LB1-60V+
156 175 50
-		 60
-		 100
-		 125
-		 -
150		 P175LF1-48E+
-		 -
P175LF1-60E+		 P175LB1-48X+
-		 -
P175LB1-60X+
225 250 75
-		 75
-		 150
-		 150
-		 -
200		 P250LF1-48E+
-		 -
P250LF1-60E+		 P250LB1-48Y+
-		 -
P250LB1-60Y+
248 300 75
-		 100
-		 150
-		 200
-		 -
250		 P300LF1-48E+
-		 -
P300LF1-60E+		 P300LB1-48A+
-		 -
P300LB1-60Z+
TYPE PSS | ENCLOSED - NEMA 1 COMBINATION | CONNECTED INSIDE DELTA
Maximum Motor Current Maximum Horsepower 480V w/fusible disconnect
switch NEMA 1		 600V w/ fusible disconnect
switch NEMA 1		 480V w/ circuit breaker NEMA 1 600V w/ circuit breaker NEMA 1
UL IEC 208V 240V 380V 480V 600V Catalog Number Catalog Number Catalog Number Catalog Number
30 30 7.5
-		 10
-		 15
-		 20
-		 -
25		 P18DF1-48B+
-		 -
P18DF1-60B+		 P18DB1-48J+
-		 -
P18DB1-60J+
37 - 10
-		 -
-		 -
-		 25
-		 -
30		 P22DF1-48B+
-		 -
P22DF1-60B+		 P22DB1-48K+
-		 -
P22DB1-60K+
48 52 15
-		 15
-		 30
-		 30
-		 -
40		 P30DF1-48C+
-		 -
P30DF1-60C+		 P30DB1-48L+
-		 -
P30DB1-60N+
58 64 20
-		 20
-		 30
-		 40
-		 -
50		 P37DF1-48C+
-		 -
P37DF1-60C+		 P37DB1-48N+
-		 -
P37DB1-60N+
69 76 20
-		 25
-		 40
-		 50
-		 -
60		 P44DF1-48C+
-		 -
P44DF1-60C+		 P44DB1-48R+
-		 -
P44DB1-60R+
81 85 25
-		 30
-		 50
-		 60
-		 -
75		 P50DF1-48D+
-		 -
P50DF1-60D+		 P50DB1-48S+
-		 -
P50DB1-60S+
96 105 30
-		 30
-		 60
-		 75
-		 -
75		 P60DF1-48D+
-		 -
P60DF1-60D+		 P60DB1-48T+
-		 -
P60DB1-60S+
116 124 40
-		 40
-		 60
-		 75
-		 -
100		 P72DF1-48D+
-		 -
P72DF1-60D+		 P72DB1-48T+
-		 -
P72DB1-60T+
147 147 50
-		 50
-		 75
-		 100
-		 -
150		 P85DF1-48D+
-		 -
P85DF1-60E+		 P85DB1-48V+
-		 -
P85DB1-60X+
181 181 60
-		 60
-		 100
-		 150
-		 -
150		 P105DF1-48E+
-		 -
P105DF1-60E+		 P105DB1-48Y+
-		 -
P105DB1-60X+
215 245 75
-		 75
-		 150
-		 150
-		 -
200		 P142DF1-48E+
-		 -
P142DF1-60E+		 P142DB1-48Y+
-		 -
P142DB1-60Y+
270 300 75
-		 100
-		 150
-		 200
-		 -
250		 P175DF1-48E+
-		 -
P175DF1-60E+		 P175DB1-48A+
-		 -
P175DB1-60Z+
389 430 125
-		 150
-		 250
-		 300
-		 -
400		 P250DF1-48F+
-		 -
P250DF1-60F+		 P250DB1-48D+
-
 -
P250DB1-60D+
429 515 150
-		 150
-		 300
-		 350
-		 -
400		 P300DF1-48F+
-		 -
P300DF1-60F+		 P300DB1-48E+
-		 -
P300DB1-60D+
