TYPE PST | SOFTSTARTERS | ENCLOSED - NEMA 1 COMBINATION
DESCRIPTION
- Wide main voltage range, 200 - 690 VAC
- Wide control voltage range, 100 - 250V, 50/60Hz
- Current ratings 30 to 1050A (In Line) and 52 - 1800A (Inside Delta)
- Premium adjustable Softstarters functions like start/stop ramp, kick start, jog, step down voltage and sequential starts
- Prepared for Field-bus communication

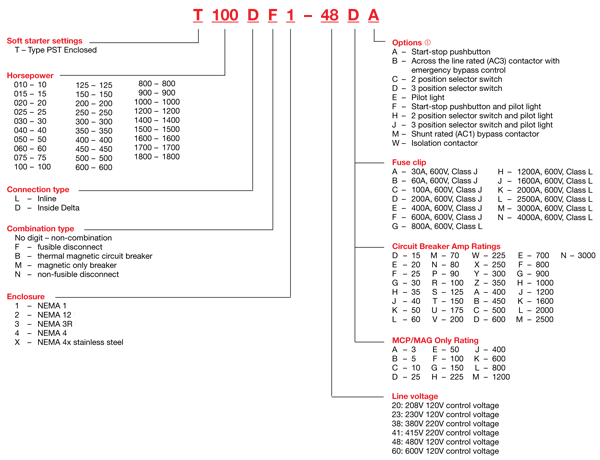

CATALOG NUMBER EXPLANATION
TYPE PST | CONNECTED IN-LINE | 5-1000HP
| Maximum Motor Current | Maximum Horsepower | NEMA 1, 480V | NEMA 1, 600V | NEMA 12, 480V | NEMA 12, 600V | |||||
| UL | IEC | 208V | 240V | 380V | 480V | 600V | Catalog Number | Catalog Number | Catalog Number | Catalog Number |
| 18 | 18 | 5 - |
5 - |
10 - |
10 - |
- 15 |
T010L1-48 - |
- T015L1-60 |
T010L2-48M - |
- T015L2-60M |
| 28 | 30 | 7.5 - |
10 - |
15 - |
20 - |
- 25 |
T020L1-48 - |
- T025L1-60 |
T020L2-48M - |
- T025L2-60M |
| 34 | 37 | 10 - |
10 - |
20 - |
25 - |
- 30 |
T025L1-48 - |
- T030L1-60 |
T025L2-48M - |
- T030L2-60M |
| 42 | 44 | 10 - |
15 - |
25 - |
30 - |
- 40 |
T030L1-48 - |
- T040L1-60 |
T030L2-48M - |
- T040L2-60M |
| 54 | 50 | 15 - |
20 - |
30 - |
40 - |
- 50 |
T040L1-48 - |
- T050L1-60 |
T040L2-48M - |
- T050L2-60M |
| 68 | 72 | 20 - |
25 - |
40 - |
50 - |
- 60 |
T050L1-48 - |
- T060L1-60 |
T050L2-48M - |
- T060L2-60M |
| 80 | 85 | 25 - |
30 - |
50 - |
60 - |
- 75 |
T060L1-48 - |
- T075L1-60 |
T060L2-48M - |
- T075L2-60M |
| 104 | 105 | 30 - |
40 - |
60 - |
75 - |
- 100 |
T075L1-48 - |
- T100L1-60 |
T075L2-48M - |
- T100L2-60M |
| 130 | 142 | 40 - |
50 - |
75 - |
100 - |
- 125 |
T100L1-48 - |
- T125L1-60 |
T100L2-48M - |
- T125L2-60M |
| 156 | 175 | 50 - |
60 - |
100 - |
125 - |
- 150 |
T125L1-48 - |
- T150L1-60 |
T125L2-48M - |
- T150L2-60M |
| 192 | 210 | 60 - |
75 - |
125 - |
150 - |
- 200 |
T150L1-48 - |
- T200L1-60 |
T150L2-48M - |
- T200L2-60M |
| 248 | 250 | 75 - |
100 - |
150 - |
200 - |
- 250 |
T200L1-48 - |
- T250L1-60 |
T200L2-48M - |
- T250L2-60M |
| 302 | 300 | 100 - |
100 - |
150 - |
250 - |
- 300 |
T250L1-48 - |
- T300L1-60 |
T250L2-48M - |
- T300L2-60M |
| 361 | 370 | 125 - |
150 - |
200 - |
300 - |
- 350 |
T300L1-48M - |
- T350L1-60M |
T300L2-48M - |
- T350L2-60M |
| 414 | 400 | - - |
- - |
250 - |
350 - |
- 400 |
T350L1-48M - |
- T400L1-60M |
T350L2-48M - |
- T400L2-60M |
| 480 | 470 | 150 - |
200 - |
300 - |
400 - |
- 500 |
T400L1-48M - |
- T500L1-60M |
T400L2-48M - |
- T500L2-60M |
| 590 | 570 | 200 - |
250 - |
350 - |
500 - |
- 600 |
T500L1-48M - |
- T600L1-60M |
T500L2-48M - |
- T600L2-60M |
| 720 | 720 | 250 - |
300 - |
450 - |
600 - |
- 700 |
T600L1-48M - |
- T700L1-60M |
T600L2-48M - |
- T700L2-60M |
| 840 | 840 | 300 - |
350 - |
500 - |
700 - |
- 800 |
T700L1-48M - |
- T800L1-60M |
T700L2-48M - |
- T800L2-60M |
| 960 | - | 350 - |
400 - |
- - |
800 - |
- 900 |
T800L1-48M - |
- T900L1-60M |
T800L2-48M - |
- T900L2-60M |
| 1062 | 1050 | 400 - |
450 - |
600 - |
900 - |
- 1000 |
T900L1-48M - |
- T1000L1-60M |
T900L2-48M - |
- T1000L2-60M |
TYPE PST | INSIDE DELTA | 7.5-1900HP
| Maximum Motor Current | Maximum Horsepower | NEMA 1, 480V | NEMA 1, 600V | NEMA 12, 480V | NEMA 12, 600V | |||||
| UL | IEC | 208V | 240V | 380V | 480V | 600V | Catalog Number | Catalog Number | Catalog Number | Catalog Number |
| 28 | 30 | 7.5 - |
10 - |
15 - |
20 - |
- 25 |
T020D1-48 - |
- T025D1-60 |
T020D2-48M - |
- T025D2-60M |
| 34 | 37 | 10 - |
10 - |
20 - |
25 - |
- 30 |
T025D1-48 - |
- T030D1-60 |
T025D2-48M - |
- T030D2-60M |
| 42 | 44 | 10 - |
15 - |
25 - |
30 - |
- 40 |
T030D1-48 - |
- T040D1-60 |
T030D2-48M - |
- T040D2-60M |
| 54 | 50 | 15 - |
20 - |
30 - |
40 - |
- 50 |
T040D1-48 - |
- T050D1-60 |
T040D2-48M - |
- T050D2-60M |
| 68 | 72 | 20 - |
25 - |
40 - |
50 - |
- 60 |
T050D1-48 - |
- T060D1-60 |
T050D2-48M - |
- T060D2-60M |
| 80 | 85 | 25 - |
30 - |
50 - |
60 - |
- 75 |
T060D1-48 - |
- T075D1-60 |
T060D2-48M - |
- T075D2-60M |
| 104 | 105 | 30 - |
40 - |
60 - |
75 - |
- 100 |
T075D1-48 - |
- T100D1-60 |
T075D2-48M - |
- T100D2-60M |
| 130 | 142 | 40 - |
50 - |
75 - |
100 - |
- 125 |
T100D1-48 - |
- T125D1-60 |
T100D2-48M - |
- T125D2-60M |
| 156 | 175 | 50 - |
60 - |
100 - |
125 - |
- 150 |
T125D1-48 - |
- T150D1-60 |
T125D2-48M - |
- T150D2-60M |
| 192 | 210 | 60 - |
75 - |
125 - |
150 - |
- 200 |
T150D1-48 - |
- T200D1-60 |
T150D2-48M - |
- T200D2-60M |
| 248 | 250 | 75 - |
100 - |
150 - |
200 - |
- 250 |
T200D1-48 - |
- T250D1-60 |
T200D2-48M - |
- T250D2-60M |
| 302 | 300 | 100 - |
100 - |
150 - |
250 - |
- 300 |
T250D1-48 - |
- T300D1-60 |
T250D2-48M - |
- T300D2-60M |
| 361 | 370 | 125 - |
150 - |
200 - |
300 - |
- 350 |
T300D1-48 - |
- T350D1-60 |
T300D2-48M - |
- T350D2-60M |
| 414 | 400 | - - |
- - |
250 - |
350 - |
- 400 |
T350D1-48 - |
- T400D1-60 |
T350D2-48M - |
- T400D2-60M |
| 480 | 470 | 150 - |
200 - |
300 - |
400 - |
- 500 |
T400D1-48 - |
- T500D1-60 |
T400D2-48M - |
- T500D2-60M |
| 590 | 570 | 200 - |
250 - |
350 - |
500 - |
- 600 |
T500D1-48M - |
- T600D1-60M |
T500D2-48M - |
- T600D2-60M |
| 720 | 720 | 250 - |
300 - |
450 - |
600 - |
- 700 |
T600D1-48M - |
- T700D1-60M |
T600D2-48M - |
- T700D2-60M |
| 840 | 840 | 300 - |
350 - |
500 - |
700 - |
- 800 |
T700D1-48M - |
- T800D1-60M |
T700D2-48M - |
- T800D2-60M |
| 960 | - | 350 - |
400 - |
- - |
800 - |
- 900 |
T800D1-48M - |
- T900D1-60M |
T800D2-48M - |
- T900D2-60M |
| 1062 | 1050 | 400 - |
450 - |
600 - |
900 - |
- 1000 |
T900D1-48M - |
- T1000D1-60M |
T900D2-48M - |
- T1000D2-60M |
| 1247 | 1215 | 400 - |
500 - |
800 - |
1000 - |
- 1200 |
T1000D1-48M - |
- T1200D1-60M |
T1000D2-48M - |
- T1200D2-60M |
| 1454 | 1370 | 500 - |
600 - |
900 - |
1200 - |
- 1500 |
T1200D1-48M - |
- T1500D1-60M |
T1200D2-48M - |
- T1500D2-60M |
| 1839 | 1823 | 600 - |
700 - |
1200 - |
1500 - |
- 1800 |
T1500D1-48M - |
- T1800D1-60M |
T1500D2-48M - |
- T1800D2-60M |
