METAL LIMIT SWITCHES | 40mm | Ø 22 BALL-BEARING ROLLER LEVER

DESCRIPTION

  • 40mm, IP66, UL Type 4X
  • Electromechanical limit switch
  • Visible Operation
  • Able to switch strong currents
  • Electrically separated contacts
  • Precise operating points (consistency)
  • Immune to electromagnetic disturbances
GENERAL PRODUCT INFORMATION
ADDITIONAL INFORMATION
Operating Head Type Ø 22 Ball-Bearing Roller Lever
Movement to be detected Unidirectional
Actuating device and actuation type
Conformity / (N.C. contact with positive opening operation)
Maximum actuation speed (m/s) 1.5
Min. force/torque - Actuation (N)
 12
Min. force/torque - Positive opening operation (N) 40
STANDARD PART NUMBERS
Operating Head Contact Type Operation Diagram Catalog Number
Ø 22 Ball-Bearing
Roller Lever
LS45M33B11
Snap Action
Ø 22 Ball-Bearing
Roller Lever		 LS45M33D11
Non-Overlapping Slow Action
Ø 22 Ball-Bearing
Roller Lever		 LS45M33C11
Overlapping Slow Action
Ø 22 Ball-Bearing
Roller Lever		 LS45M33L02
Slow Action
Ø 22 Ball-Bearing
Roller Lever		 LS45M33L20
Slow Action
Ø 22 Ball-Bearing
Roller Lever		 LS45M33B02
Snap Action

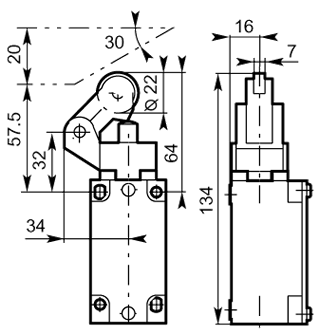

APPROXIMATE DIMENSIONS (mm)
