METAL LIMIT SWITCHES | 40mm | ADJUSTABLE Ø 6 POLYAMIDE ROD LEVER
DESCRIPTION
- 40mm, IP66, UL Type 4X
- Electromechanical limit switch
- Visible Operation
- Able to switch strong currents
- Electrically separated contacts
- Precise operating points (consistency)
- Immune to electromagnetic disturbances
Buying parts for a control panel? Gross Manufacturing can build the panel instead: UL 508A listed and ISO 9001 certified, in Brookfield, WI.
ADDITIONAL INFORMATION
| Operating Head Type | Adjustable Ø 6 Polyamide Rod Lever |
| Movement to be detected | Fully Directional Translation Movement |
| Actuating device and actuation type |  |
Conformity /  (N.C. contact with positive opening operation) |
 |
| Maximum actuation speed (m/s) | 1.5 |
| Min. torque - Actuation (N.m) |
0.15 |
| Min. torque - Positive opening operation (N.m) | - |
STANDARD PART NUMBERS
| Operating Head | Contact Type | Operation Diagram | Catalog Number |
| Adjustable Ø 6 Polyamide Rod Lever |
 |
 |
LS45M72B11+ |
| Snap Action | |||
| Adjustable Ø 6 Polyamide Rod Lever |
 |
 |
LS45M72D11+ |
| Non-Overlapping Slow Action | |||
| Adjustable Ø 6 Polyamide Rod Lever |
 |
 |
LS45M72C11+ |
| Overlapping Slow Action | |||
| Adjustable Ø 6 Polyamide Rod Lever |
 |
 |
LS45M72L02+ |
| Slow Action | |||
| Adjustable Ø 6 Polyamide Rod Lever |
 |
 |
LS45M72L20+ |
| Slow Action | |||
| Adjustable Ø 6 Polyamide Rod Lever |
 |
 |
LS45M72B02+ |
| Snap Action |

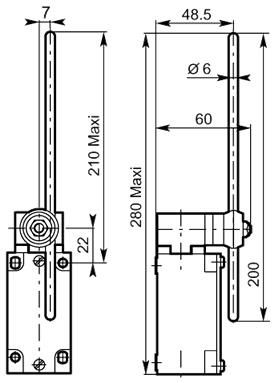

APPROXIMATE DIMENSIONS (mm)
